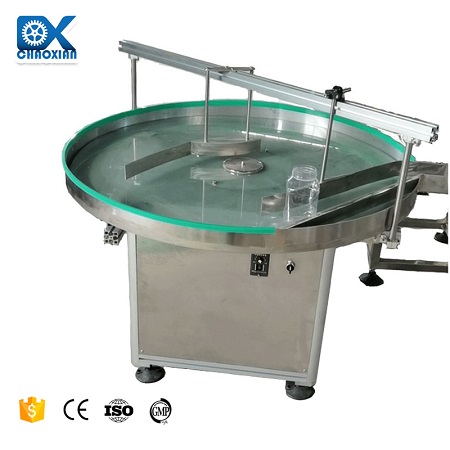

Loading turntables are manufactured with a guide superstructure that allows operators of s to quickly and easily supply bottles to the . Operators simply place the bottles on the turntable and let the bottle guide take over. Bottles will be moved to the outer edge of the turntable where they will eventually move to the power conveyor to be taken downstream to such packaging s as container cleaners, fillers, and machines.
There are 2 standard models of our turntable: diameter of 800MM and 1200MM. While the turntable will handle a wide range of container sizes, other turntable top diameters are available for extremely small or extremely large bottles. We can provide you with our best suggestion according to your requirements.
Accumulating turntables are normally used at the end of the packaging line, to gather bottles or containers for packing and shipping. However, some packaging processes that are less than fully automated may use accumulating turntables at other points in the system.

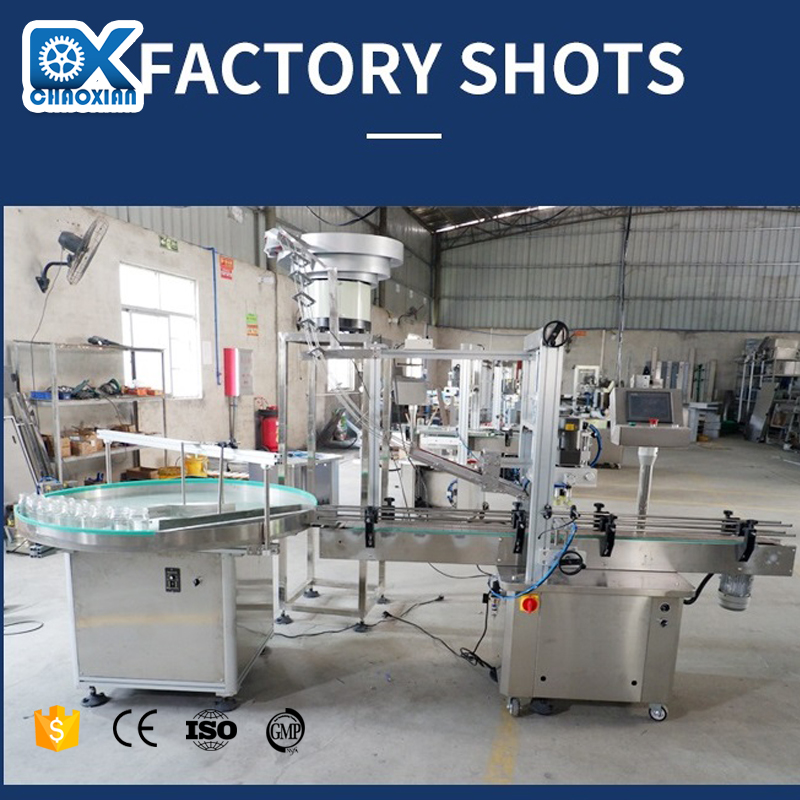

For example, a facility with an machine and an automatic capping machine may gather bottles on an accumulating turntable immediately after the capping process. As they accumulate, a lower to medium rate facility may have manual labor to apply labels to the filled and capped bottles. The laborers would remove the bottle from the accumulating turntable, place the label, and, perhaps, set the bottle back on the power conveyor to be bundled or packed for shipping. Like the loading turntables, accumulating turntables can be manufactured with diameters other than 1200MM to accommodate almost any project.
As you may have noted, the difference between the loading and accumulating turntable is the bottle guide. Accumulating turntables does not require a guide to move bottles to a specific point on the turntable. Instead, the accumulating table simply gathers as many bottles as possible, using the entire surface area of the stainless steel top.
Transfer turntables can also be manufactured to move bottles from one conveyor to another around a bend. For instance, if a facility sets up a horseshoe packaging system, the transfer turntables will be used to move containers around the two ninety-degree turns. A horseshoe packaging system is used to save space and may be set up with a rinsing machine on one side of the system, followed by a ninety-degree turn to the filling machine and capping machine, followed by another ninety-degree turn to get to the labeling machine. The shape of the system gives the line its name and the transfer turntables connect the three sides by shifting the path of the bottles as they travel along the power conveyor.
Whether you are looking to load, accumulate, or transfer turntables, Guangzhou ChaoXian can match the type, size, and material of the turntable to find the perfect for your unique system. Contact us today!
The flipping process can be difficult with certain items or certain bottles. Large, oddly shaped bottles may not be suitable for inversion. Bottles with tiny openings and odd shapes may also not be suitable for allowing debris to drain out efficiently and consistently.
Contact us now, you will be more equipped to choose the filling, capping, or labeling machines that can benefit your production output and company. The customized packing machines will provide high-quality processes, eliminate waste, and maintain product quality throughout production. In addition, the packing machines will be able to adapt to your operations changes in the future. Let a design and manufacturing company helps your operations by creating customized filling, capping, and labeling machines that work best with your processes and products.
